Stick Coil - BMW S1000, HP4 & G310 Models; 12 13 8 523 972 / BMW

13 8 523 972,138523972,12 13 7 710 874,1213710874,G310 stick coil,S1000R,stick coil, pencil coil,S Bike coil,coil bmw S1000,coil bmw S1000R,coil bmw S1000RR,coil bmw S1000XR,stick coil bmw S1000,stick coil bmw S1000r,stick coil bmw S1000rr,stick coil bmw

Alternative Views:

Part #: SCoil972

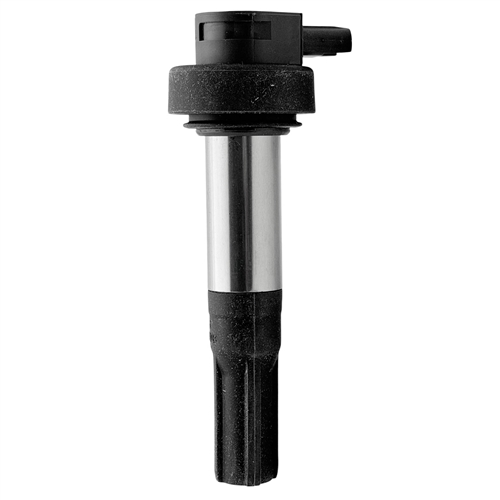

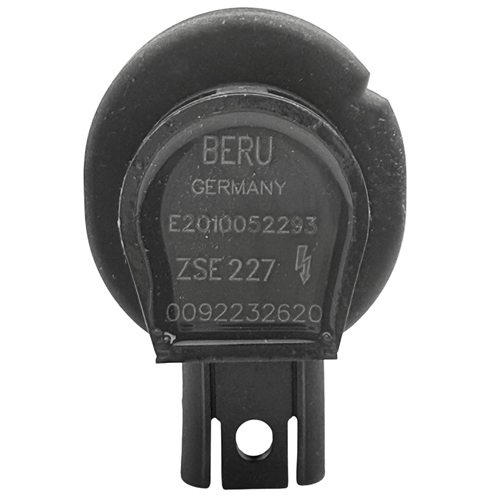

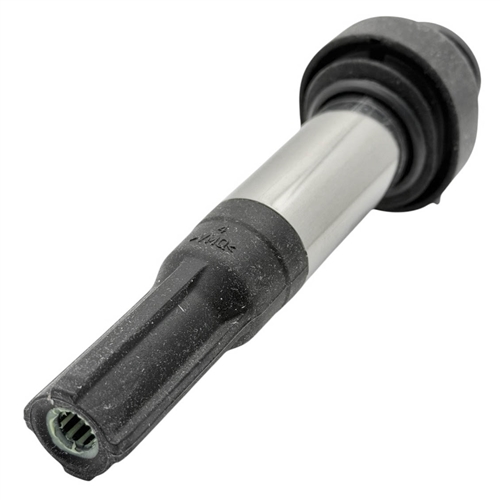

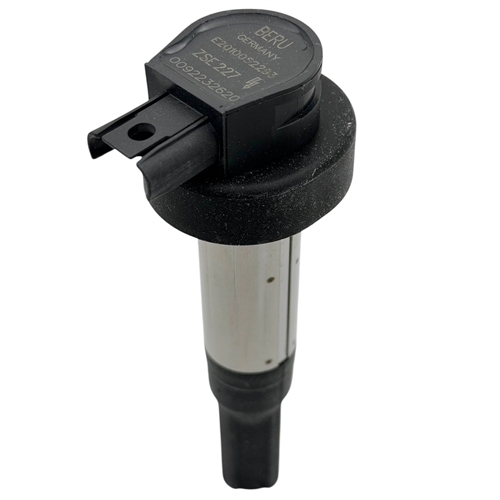

BMW Coil Over Plug Ignition Stick Coil

NOTE: Please check the part number on your existing coil as there another coil for earlier models, see BMW-SCoil874

Vehicle Manufacturer: BMW
Application: BMW S Bike models
Make/Model: BMW S1000R, S1000R 17, S1000RR 15, S1000RR 17, S1000XR
Model Years: 2013 - 2017
Manufacturer #: 12 13 8 523 972

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Made in Germany

BMW List Price $224.31

USD Price $224.31

BUY NOW $179.00

Quantity in Stock:5

Part #: SCOIL972

Quantity:

Description

Application Table

NO warranty is offered when purchasing and replacing one stick coil at a time

As per BMW Technical Service Bulletin, all coils should be replaced as a complete set.

Over time, heat and aging make the spark plug connector brittle. The terminal connection becomes loose in the sealing area of the spark plug, which may cause misfiring and other poor ignition symptoms.

Installation Guide:

Switch off the IGNITION. Wait for 15 minutes before removing the spark plug coil. This prevents voltage peaks that may damage or destroy the Engine Electronic Control Unit .

Remove the defective coil.

Apply a thin film a dielectric grease to the neck of the spark plug, or the inner part of the rubber sealing boot.

Re-attach the spark plug coil to the spark plug.

Check the primary connector contacts for oxidation and clean if required. Apply dielectric grease for improved continuity and future oxidation prevention.
