Ignition Stick Coil - BMW F650, F700, F800, K1200, K1300; 12 13 7 715 846 or 12 13 8 523 968 / Beru

Home > K Bike > Electrical System > Ignition > Coils >

Stick Coil (Straight) Early Models- BMW F650, F700, F800, K1200, K1300; 12 13 7 715 846, 12 13 8 523 968 / Beru

12 13 7 715 846, 12 13 8 523 968, 12137715846, 12138523968, F650, F700, F800, k1200, K1300, coil over plug, stick coil, pencil coil, BERU COIL, BERU ZS385, BERU ZS384, BERU ZS383, ZS385, ZS384, ZS383, PULSE COIL, PULSE IGNITION, gs coil, stick coil bmw,

Alternative Views:

Part #: SCoil846

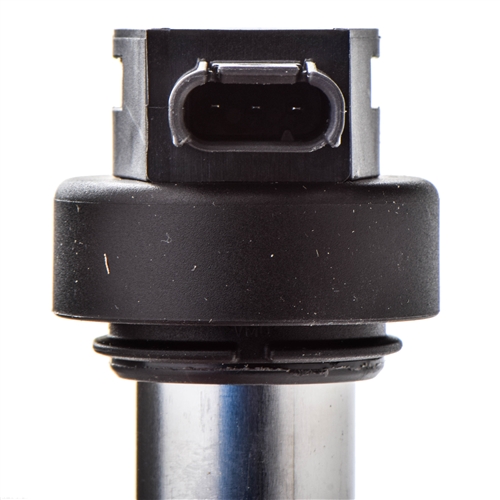

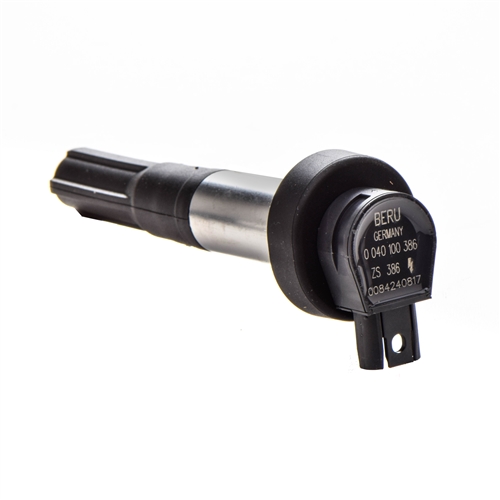

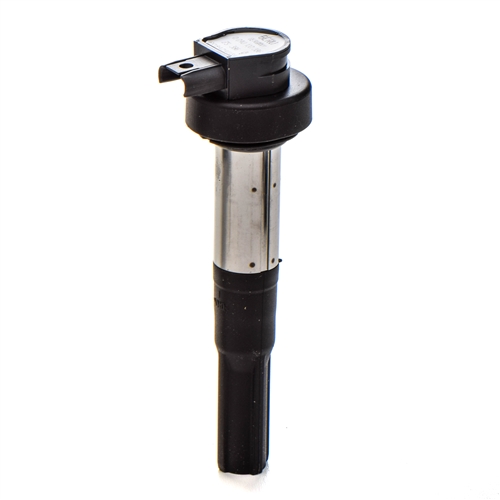

Beru Coil over Spark Plug - Ignition stick coil.

See SCoil404 for stick coil on later models

Vehicle Manufacturer: BMW
Application: BMW F Bike, K Bike Models
Make/Model: BMW F650, F700, F800, K1200, K1300
Model Years: 2003 - 2013
Manufacturer #: 12 13 7 715 846 (Straight) superseded by 12 13 8 523 968
BMW Coil #: 12177, 46 45 117, 77 15 846, 77 09 080, 76 70 815

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Original Equipment :

Made in Germany by a Federal-Mogul Subsidiary

BMW List Price $219.90

USD Price $149.00

Quantity in Stock:28

Part #: SCOIL846

Quantity:

Description

Application Table

F Models: 2 Coils Required
K Models: 4 Coils Required

As per BMW Technical Service Bulletin, all coils should be replaced as a complete set.

Made in Germany by BERU (Federal Mogul subsidiary)
Improved design with stainless steel jacket for strength and heat reflection
1K Ohm total resistance

Over time, heat and aging make the spark plug connector brittle. The terminal connection becomes loose in the sealing area of the spark plug, which may cause misfiring and other poor ignition symptoms.

Installation Guide:

Switch off the IGNITION. Wait for 15 minutes before removing the spark plug coil. This prevents voltage peaks that may damage or destroy the Engine Electronic Control Unit .
Remove the defective coil.
Apply a thin film a dielectric grease to the neck of the spark plug, or the inner part of the rubber sealing boot.
Re-attach the spark plug coil to the spark plug.
Check the primary connector contacts for oxidation and clean if required. Apply dielectric grease for improved continuity and future oxidation prevention.

EME Part #	SCoil846
BMW Part #	12 13 7 715 846, 12 13 8 523 968

Model	Year

K BIKE MODELS	K Series Uses Spark Plug NGK KR9CI x 4

K1200GT (K44)	11/04-09/08 ECE
K1200GT 06-08 (K44)	11/04-09/08 USA
K1200R (K43)	03/04-08/08 ECE
K1200R (K43)	04/04-07/08 USA
K1200R Sport (K43)	06/05-07/07 ECE
K1200R Sport (K43)	06/05-07/07 USA
K1200S (K40)	04/03-08/08 ECE
K1200S (K40)	04/03-08/08 USA

K1300GT (K44)	12/07-10/10 ECE
K1300GT (K44)	12/07-08/10 USA
K1300R (K43)	11/07-07/15 ECE
K1300R (K43)	12/07-01/12 USA
K1300S (K40)	12/07-09/15 ECE
K1300S (K40)	11/07-09/15 USA

F BIKE MODELS	F Series Uses Spark Plug NGK DCPR8E x 2

F650GS(K72) (K72)	10/06-06/12 ECE
F650GS(K72) 09+ (K72)	11/06-06/12 USA

F700GS (K70)	07/11-07/16 ECE
F700GS (K70)	06/11-06/16 USA

F800GS 08 (K72)	10/06-06/12 ECE
F800GS 08 (K72)	11/06-05/12 USA
F800GS 13-15 (K72)	07/11-07/16 ECE
F800GS 13-15 (K72)	06/11-07/16 USA
F800GS ADV 13-15 (K75)	05/12-05/16 ECE
F800GS ADV 13-15 (K75)	05/12-03/16 USA
F800GT (K71)	10/11-09/16 ECE
F800GT (K71)	10/11-04/16 USA
F800R 05-14 (K73)	12/05-09/14 ECE
F800R 05-14 (K73)	12/05-07/14 USA
F800R 15 (K73)	11/13-09/16 ECE
F800R 15 (K73)	11/13-07/16 USA
F800S (K71)	12/04-05/10 ECE
F800S (K71)	12/04-01/08 USA
F800ST (K71)	12/04-07/12 ECE
F800ST (K71)	12/04-07/12 USA
