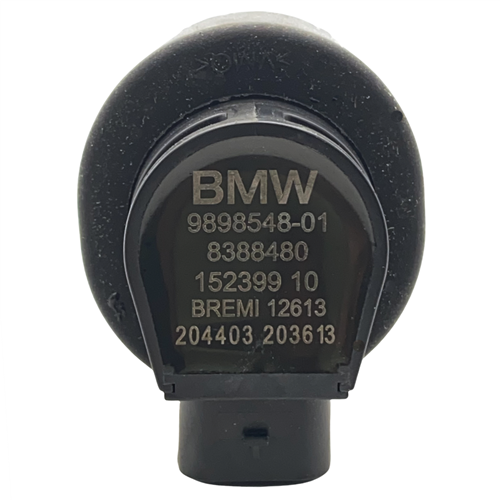

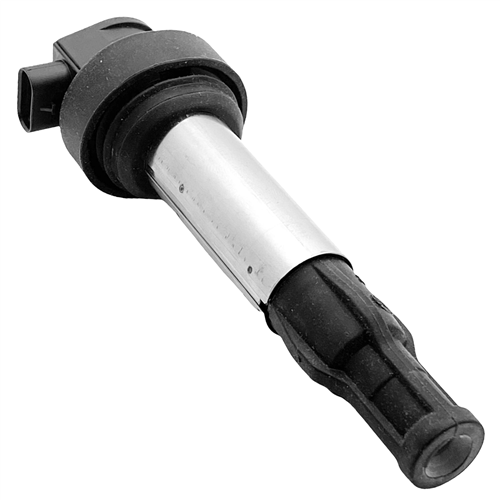

Stick Coil (Straight) - BMW F750, F800, F850, F900, G310, M1000, S1000; 12 13 9 898 548 / BMW
12 13 9 898 548,12139898548,F700GS Stick Coil,F800GS Stick Coil,F800GS ADV Stick Coil,F900R Stick Coil,F900XR Stick Coil,S1000RR Stick Coil,S1000XR Stick Coil

Alternative Views:
Part #: SCoil318

BMW Coil Over Spark Plug - Ignition Stick Coil.

NOTE: The F Bike models require 2 coils and the S Bike Models require 4 coils.

Vehicle Manufacturer: BMW
Application: BMW F Bike, S Bike Models
Make/Model: BMW F750, F800, F850, F900, G310, M1000, S1000
Model Years: 2006 - 2024
Manufacturer #: 12 13 7 924 318,12 13 9 898 548

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Brand: BMW
BMW List Price $198.52
USD Price $198.52
BUY NOW $179.00

Quantity in Stock:2

Part #: SCOIL318
Quantity:

Description
 		Application Table

As per BMW Technical Service Bulletin, all coils should be replaced as a complete set.

  • Made in Germany by Bremi
  • Improved design with stainless steel jacket for strength and heat reflection
  • 1K Ohm total resistance

Over time, heat and aging make the spark plug connector brittle. The terminal connection becomes loose in the sealing area of the spark plug, which may cause misfiring and other poor ignition symptoms.

Installation Guide:

  1. Switch off the IGNITION. Wait for 15 minutes before removing the spark plug coil. This prevents voltage peaks that may damage or destroy the Engine Electronic Control Unit .
  2. Remove the defective coil.
  3. Apply a thin film a dielectric grease to the neck of the spark plug, or the inner part of the rubber sealing boot.
  4. Re-attach the spark plug coil to the spark plug.
  5. Check the primary connector contacts for oxidation and clean if required. Apply dielectric grease for improved continuity and future oxidation prevention.
