Part #: IgnSen317

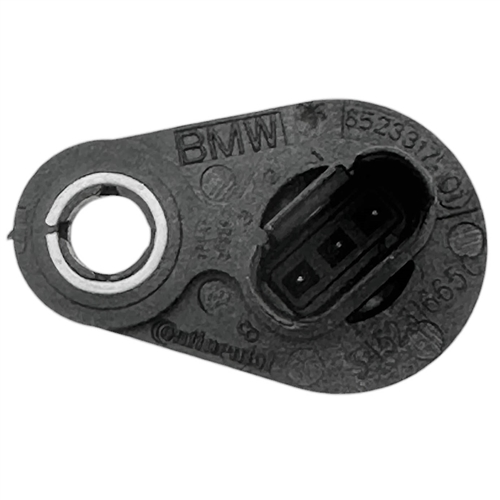

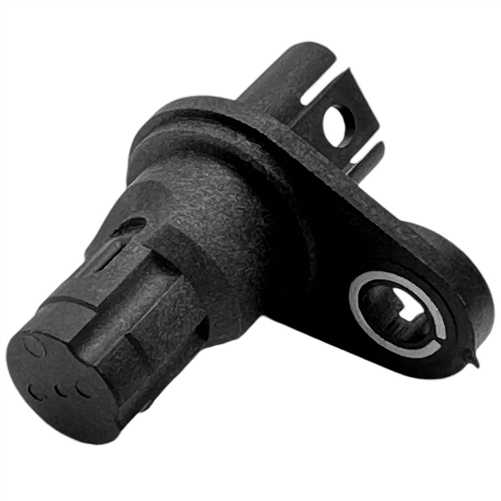

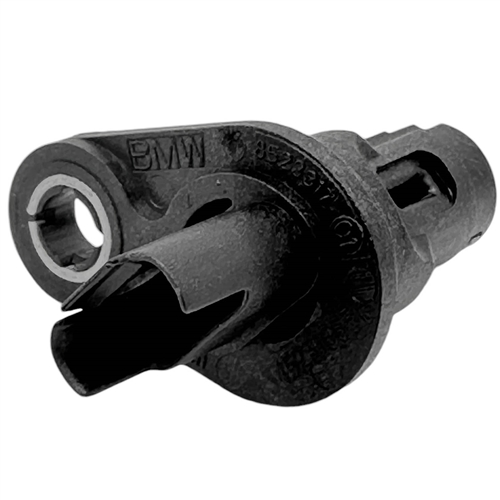

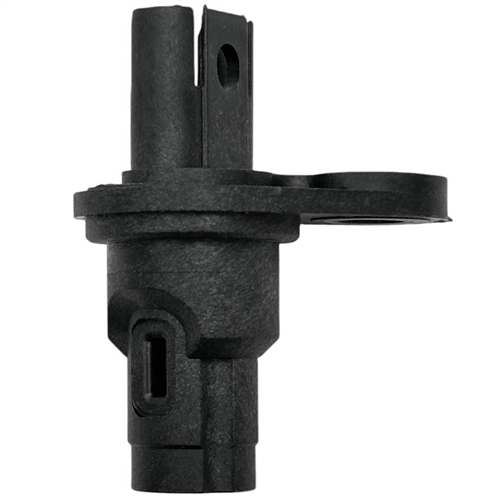

Camshaft Position Sensor.

The camshaft position sensor reads the position and speed of the camshaft and in conjunction with the ignition timing sensor sends information to the ECU to determine fuel and ignition requirements (engine management).

Vehicle Manufacturer: BMW
Application: BMW C600, C650, F750, F850, HP4, K1600, R900, R1200, S1000
Model Years: BMW 2011 - 2020
Vehicle Mfg. Part # 12 72 8 523 317

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Brand: BMW

List Price $93.83

USD Price $93.83

Quantity in Stock:2

Part #: IGNSEN317

Quantity:

Description

Application Table

Test the resistance of your Ignition Sensor between the terminals on the sensor side of the connector, if it varies greatly from 768Ω then it should be replaced.

NOTE:

Before disconnecting the wiring from the sensor make sure the ignition is switched OFF and the battery disconnected.
The engine management system adaptation values must be reset by a BMW dealer to recognize the new component.

EME Part Number:	IgnSen317
BMW Part Number:	12 72 8 523 317

Model	Year
F BIKE MODELS
F750GS (K80)	10/16-07/20 ECE
F750GS (K80)	10/16-05/20 USA

F850GS (K81)	10/16-07/20 ECE
F850GS (K81)	10/16-06/20 USA
F850GS ADV (K82)	06/17-07/20 ECE
F850GS ADV (K82)	06/17-05/20 USA

K BIKE MODELS
K1600 Bagger (K61)	01/17-06/20 ECE
K1600 Bagger (K61)	01/17-05/20 USA
K1600GT (K48)	01/10-09/16 ECE
K1600GT (K48)	02/10-03/16 USA
K1600GT 17 (K48)	09/15-07/20 ECE
K1600GT 17 (K48)	09/15-05/20 USA
K1600GTL (K48)	01/10-09/16 ECE
K1600GTL (K48)	01/10-04/16 USA
K1600GTL 17 (K48)	09/15-07/20 ECE
K1600GTL 17 (K48)	10/15-05/20 USA
K1600GTL EXCL (K48)	06/13-08/16 ECE
K1600GTL EXCL (K48)	06/13-06/16 USA

HEXHEAD MODELS
R1200GSW 13-15 (K50)	10/11-12/16 ECE
R1200GSW 13-15 (K50)	10/11-11/16 USA
R1200GSW 17 (K50)	11/15-07/18 ECE
R1200GSW 17 (K50)	09/15-07/18 USA
R1200GSW ADV 14-15 (K51)	09/12-07/18 ECE
R1200GSW ADV 14-15 (K51)	09/12-07/18 USA
R1200R 15 (K53)	11/13-07/18 ECE
R1200R 15 (K53)	11/13-07/18 USA
R1200RS (K54)	06/14-07/18 ECE
R1200RS (K54)	06/14-07/18 USA
R1200RTW (K52)	01/13-07/18 ECE
R1200RTW (K52)	01/13-07/18 USA

S BIKE MODELS
HP4 Race (K60)	02/17-05/18 ECE
HP4 Race (K60)	05/17-05/18 USA

S1000R (K47)	03/13-07/16 ECE
S1000R (K47)	02/13-07/16 USA
S1000R 17 (K47)	01/16-07/20 ECE
S1000R 17 (K47)	01/16-06/20 USA
S1000RR 15 (K46)	10/13-07/16 ECE
S1000RR 15 (K46)	10/13-07/16 USA
S1000RR 17 (K46)	09/15-11/18 ECE
S1000RR 17 (K46)	09/15-11/18 USA
S1000XR 14-18 (K49)	05/14-05/19 USA
S1000XR 14-19 (K49)	05/14-11/19 ECE

SCOOTER MODELS
C600 Sport (K18)	02/11-07/15 ECE
C600 Sport (K18)	02/11-05/15 USA
C650GT (K19)	01/11-07/15 ECE
C650GT (K19)	01/11-05/15 USA
