Fuel Level Sensor - BMW K1200, R900, R1200; 16 14 1 600 132, 16 14 7 675 547 / EnDuraLast

16147675547, 16 14 7 675 547, fuel level sensor bmw k1200, fuel level sensor bmw r900, fuel level sensor bmw r1200, fuel level float bmw k1200, fuel level float bmw r900, fuel level float bmw r1200, gas gauge bmw r900, gas gauge bmw r1200, gas gauge bmw k

Part # FLS-547EDL

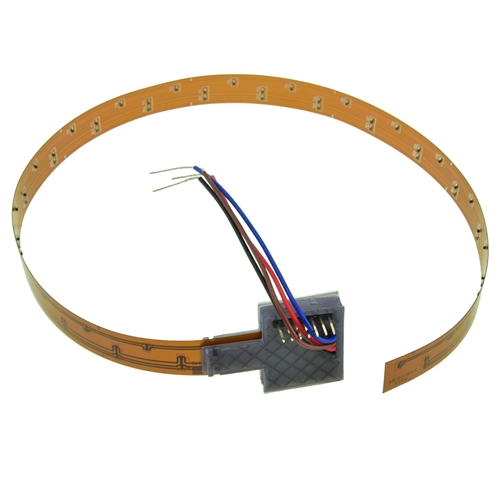

Aftermarket Fuel Level Sensor.

Designed to replace the original BMW fuel strip sensor, this aftermarket fuel strip sensor has been developed to be durable through the use of a new microprocessor which is not subjected to thermal stress (the reason for failure of the original sensors). Only for models that use the strip sensor and don't have a float. Does not include the plastic sheath that goes inside the tank.

See installation details below:

Vehicle Manufacturer: BMW
Application: BMW K Bike, Hexhead Models
Make/Model: BMW: K1200, R900, R1200
Model Years: 1999 - 2014
Manufacturer #: 16 14 7 675 547, 16 14 1 600 132

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Brand:

BMW List Price $278.70

USD Price $250.00

Quantity in Stock:(Out of Stock)

Part #: FLS-547EDL

Quantity:

Email me when Back-In-Stock

Description

Application Table

INSTALLATION INSTRUCTIONS

1. On the original fuel strip, firstly remove the original strip from the plastic housing with the assistance of a flat bladed screwdriver to open up the plastic clip at the one end. Once this has been done, the sensor can be unplugged and the strip removed.

2. Now you can feed the new strip in to the black plastic housing. Push the strip in to the housing until you get to the sensor; push this in until it seats.

3. Snip the wires from the old fuel sensor so that you can then connect up to the exposed wires on the new fuel sensor, making use of the existing wiring connector. Connect the wires up, matching the colors as you go. We suggest soldering the wires for a good, solid connection. Cover the soldered connection with heat shrink.

4. Refit to the sensor to the bike, and calibrate just like the original sensor using a tool such as the Hex GS-911.

NOTE:
- When connecting the sensor, the colors of the cables must be replaced like for like.
- When removing the damaged sensor, it is important to correctly clean the pins where the new one will be placed, they can even be twisted with a needle nose pliers about 15 or 20 degrees to ensure good quality contact.
- It is essential to carry out a full battery charge after changing the sensor so that it starts measuring correctly.
- Calibration is recommended in all cases. Installing the sensor without a calibration will cause an error. The calibration can be carried out with the sensor outside or inside the tank and with or without fuel.
- It's important to know that the ECU makes a measurement 1 minute after the motorbike starts and the side stand must be up; if you turn the bike on and off without waiting the measurement will be untrue.

See the following installation video with English subtitles: HERE
