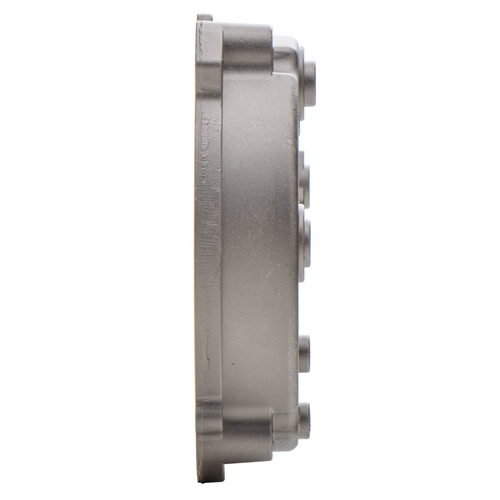

Alternator 107.5mm Stator Frame for BMW Airhead - 12 31 1 243 002 / EnDuraLast

Airhead; Bosch stator; Bosch 3-phase stator

Alternative Views:

Part #: BOALT-StatFram107

The EnDuraLast Alternator Stator for Bosch Charging Systems replaces Original Stator Frame on ALL BMW Airheads and Moto Guzzi models with the Bosch 3-Phase Charging System 1969-1995.

Replaces BOSCH Alternator covers with the following Bosch numbers: 0 120 340 002 / 003 / 004 / 005 / 006 and 008

Will retrofit BOSCH alternator cover 0 120 340 001 when used with BOALT-Stator105 or BOALT-Stator105OE.

Will NOT retrofit BOSCH alternator cover 0 120 340 001 when used with BOALT-Stator105-2, BOALT-Stator105-2OE, BOALT-Stator105-2Y and BOALT-Stator105-2YOE due to these stators having an outside diameter of 105mm.

Vehicle Manufacturer: BMW
Application: 1977-95 BMW R w/ 107mm stator
Make/Model: BMW : Model 247, Airhead
Model Years: 1977 to 1995
Vehicle Mfg. Part #: 12 31 1 243 002

(See APPLICATION TABLE tab to verify vehicle fitment)

Brand:

USD Price $49.99

Quantity in Stock:403

Part #: BOALT-STATFRAM107

Quantity:

Description

Application Table

NOTE: Stock fitment on all Airheads except /5's. With a size stator ending in 105, you can retrofit this to /5's and utilize the Y terminal to increase from 180w to 240w stock configuration!

EME Part Number:	BOALT-StatFram107
BMW Part Number:	12 31 1 243 002

R45 (248)	01/78-07/85 ECE
R45/N (248)	03/78-07/85 ECE
R45T (248)	10/80-06/85 ECE
R45T/N (248)	09/80-07/85 ECE

R60 TIC (2477)	09/78-11/82 ECE
R60/7 (2477)	05/76-04/80 ECE
R60/7 (2477)	07/76-11/77 USA

R65 20KW (2472)	04/85-06/93 ECE
R65 35KW (2472)	06/85-10/88 ECE
R65 (2472)	07/85-05/87 USA
R65 (248)	01/78-07/85 ECE
R65 (248)	07/78-04/85 USA
R65GS (2471)	11/87-11/92 ECE
R65LS (248)	03/81-03/85 ECE
R65LS (248)	06/81-02/85 USA
R65RT SF (2472)	07/85-11/88 ECE
R65T (248)	09/80-07/85 ECE

R75/7 (2477)	05/76-01/79 ECE
R75/7 (2477)	07/76-06/77 USA

R80 85-87 (2472)	07/84-07/87 USA
R80 (2472)	03/84-01/95 ECE
R80 (2477)	04/77-11/84 ECE
R80 (2477)	04/77-07/80 USA
R80GS PD (47E1)	06/90-07/90 ECE
R80GS PD (47E2)	08/90-06/95 ECE
R80GS (2471)	05/80-07/87 ECE
R80GS (2471)	06/80-03/87 USA
R80GS (47E1)	01/87-07/90 ECE
R80GS (47E2)	04/90-10/95 ECE
R80GS (47E3)	01/96-12/96 ECE
R80R Mystik (2473)	03/94-03/95 ECE
R80R (2473)	03/91-06/94 ECE
R80RT 85-87 (2472)	07/84-04/87 USA
R80RT (2472)	07/84-12/95 ECE
R80RT (2477)	06/82-11/84 ECE
R80RT (2477)	08/82-10/84 USA
R80ST (2471)	04/82-10/84 ECE
R80ST (2471)	10/82-10/84 USA
R80TIC (2477)	06/78-01/85 ECE

R100/7 (2474)	05/76-06/77 ECE
R100/7T (2474)	04/77-10/84 ECE
R100/7T (2474)	05/76-07/78 USA
R100/T (2474)	09/78-09/84 USA
R100CS (2474)	06/80-10/84 ECE
R100CS (2474)	09/80-09/84 USA
R100GS 91-95 (47E2)	11/90-09/94 USA
R100GS PD 91-95 (47E2)	09/90-12/95 USA
R100GS PD (47E1)	02/89-07/90 ECE
R100GS PD (47E1)	06/89-04/90 USA
R100GS PD (47E2)	08/90-02/96 ECE
R100GS (47E1)	12/86-07/90 ECE
R100GS (47E1)	01/87-03/90 USA
R100GS (47E2)	04/90-07/94 ECE
R100R Mystik (2473)	12/93-01/96 ECE
R100R Mystik (2473)	03/94-09/95 USA
R100R (2473)	03/91-12/95 ECE
R100R (2473)	09/91-12/95 USA
R100RS 77-84 (2474)	05/76-10/84 USA
R100RS 88-93 (2478)	08/87-08/92 USA
R100RS (2474)	03/76-11/84 ECE
R100RS (2478)	07/86-10/92 ECE
R100RT 79-84 (2474)	04/78-09/84 USA
R100RT 88-95 (2478)	08/87-12/95 USA
R100RT (2474)	06/78-10/84 ECE
R100RT (2478)	07/87-12/95 ECE
R100S (2474)	05/76-07/80 ECE
R100S (2474)	05/76-07/80 USA
R100TIC (2474)	11/80-09/84 ECE
