Part #: BOALT-HAR063

Premium Quality Aftermarket Replacement Wiring Harness for Diode Board.

Note: Not all wires used on early models - check your vehicle's rectifier / diode board wiring prior to ordering and installation.

Vehicle Manufacturer: BMW
Application: BMW Airhead with BOSCH Charging System
Make/Model: BMW R60, R65, R75, R80, R90, R100
Model Years: 1969 - 1995
Manufacturer #:

12 33 1 357 639 - Wiring Set
12 32 1 243 178 - Wiring Set
61 12 1 243 224 - Charging Current

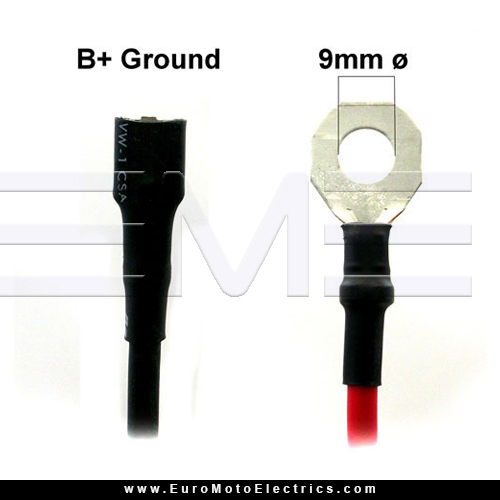

12 31 1 358 130 - Ground

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Brand :

BMW List Price $38.69

USD Price $16.75

BUY NOW $12.99

Quantity in Stock:324

Part #: BOALT-HAR063

Quantity:

Description

Application Table

The harness replaces old deteriorating wires on ALL BMW Airheads diode boards with BOSCH 3-phase Charging System 1969-1995.Note that the W / V / U wiring orientation or sequence is insignificant on these diode boards and associated alternator.

Read the Classic Boxer Charging Book by Rick Jones for deeper insight into your charging system - EME Part # CBC-Book

Removing Harness (Courtesy Brook Reams)

Part # : BOALT-HAR063
BMW # 12 33 1 357 639, 12 32 1 243 178, 61 12 1 243 224, 12 31 1 358 130

Model	Year	Power Rating:
R45 (248)	01/78-07/85 ECE
R45/N (248)	03/78-07/85 ECE
R45T (248)	10/80-06/85 ECE
R45T/N (248)	09/80-07/85 ECE

R50US (T50)	08/67-08/69 USA	180 watt / 13 amp
R50/5 (2476)	08/69-07/73 ECE	180 watt / 13 amp

R60/2 (T60)	01/60-12/69 ECE	180 watt / 13 amp
R60US (T60)	01/67-12/69 USA	180 watt / 13 amp
R60 TIC (2477)	09/78-11/82 ECE
R60/6 (2476)	07/73-06/76 ECE
R60/6 (2476)	01/74-05/76 USA
R60/7 (2477)	05/76-04/80 ECE
R60/7 (2477)	07/76-11/77 USA

R65 (2472)	07/85-05/87 USA
R65 (248)	01/78-07/85 ECE
R65 (248)	07/78-04/85 USA
R65 20KW (2472)	04/85-06/93 ECE
R65 35KW (2472)	06/85-10/88 ECE
R65GS (2471)	11/87-11/92 ECE
R65LS (248)	03/81-03/85 ECE
R65LS (248)	06/81-02/85 USA
R65RT SF (2472)	07/85-11/88 ECE
R65T (248)	09/80-07/85 ECE

R69S (T69)	01/60-12/69 ECE	180 watt / 13 amp
R69US (T69)	01/67-12/69 USA	180 watt / 13 amp

R75/5 (2476)	08/69-07/80 ECE	180 watt / 13 amp
R75/6 (2476)	09/73-06/76 ECE
R75/6 (2476)	01/74-06/76 USA
R75/7 (2477)	05/76-01/79 ECE
R75/7 (2477)	07/76-06/77 USA

R80 (2472)	07/84-07/87 USA
R80 (2472)	03/84-01/95 ECE
R80 (2477)	04/77-11/84 ECE
R80 (2477)	04/77-07/80 USA
R80GS (2471)	05/80-07/87 ECE
R80GS (2471)	06/80-03/87 USA
R80GS (47E1)	01/87-07/90 ECE
R80GS (47E2)	04/90-10/95 ECE
R80GS (47E3)	01/96-12/96 ECE
R80GS PD (47E1)	06/90-07/90 ECE
R80GS PD (47E2)	08/90-06/95 ECE
R80R (2473)	03/91-06/94 ECE
R80R Mystik (2473)	03/94-03/95 ECE
R80RT (2472)	07/84-12/95 ECE
R80RT (2472)	07/84-04/87 USA
R80RT (2477)	06/82-11/84 ECE
R80RT (2477)	08/82-10/84 USA
R80ST (2471)	04/82-10/84 ECE
R80ST (2471)	10/82-10/84 USA
R80TIC (2477)	06/78-01/85 ECE

R90/6 (2476)	09/73-06/76 ECE
R90/6 (2476)	01/74-06/76 USA
R90S (2476)	09/73-06/76 ECE
R90S (2476)	01/74-06/76 USA

R100/7 (2474)	05/76-06/77 ECE
R100/7T (2474)	04/77-10/84 ECE
R100/7T (2474)	05/76-07/78 USA
R100/T (2474)	09/78-09/84 USA
R100CS (2474)	06/80-10/84 ECE
R100CS (2474)	09/80-09/84 USA
R100GS (47E1)	01/87-03/90 USA
R100GS (47E1)	12/86-07/90 ECE
R100GS (47E2)	11/90-09/94 USA
R100GS PD (47E1)	02/89-07/90 ECE
R100GS PD (47E1)	06/89-04/90 USA
R100GS PD (47E2)	09/90-12/95 USA
R100GS PD (47E2)	08/90-02/96 ECE
R100R (2473)	03/91-12/95 ECE
R100R (2473)	09/91-12/95 USA
R100R Mystik (2473)	12/93-01/96 ECE
R100R Mystik (2473)	03/94-09/95 USA
R100RS (2474)	03/76-11/84 ECE
R100RS (2474)	05/76-10/84 USA
R100RS (2478)	08/87-08/92 USA
R100RS (2478)	07/86-10/92 ECE
R100RT (2474)	06/78-10/84 ECE
R100RT (2474)	04/78-09/84 USA
R100RT (2478)	07/87-12/95 ECE
R100RT (2478)	08/87-12/95 USA
R100S (2474)	05/76-07/80 ECE
R100S (2474)	05/76-07/80 USA
R100TIC (2474)	11/80-09/84 ECE
