Ignition Module - BMW Airhead; 12 14 2 325 284 / EnDuraLast

12 14 2 325 284, 12 14 1 244 477, 12 14 244 478, 12142325284, 12141244477, 1214277478, BMW R airhead ignition module, BMW Airhead ignition module, airhead ignition module, 0 227 100 103, 0 227 100 113, 0 227 100 116, 0227100116, 0227100113, 02271001030227

Alternative Views:

Part #: IgnMod-R284

Ignition Control Unit / Transistorized Ignition Module.

Updated, modern version that works well with both the twin 6v coils and the Bosch transistorized ignition coil.

Vehicle Manufacturer: BMW
Application: BMW Airhead - All OE BOSCH Electronic Ignition with hall effect sensor
Make/Model: BMW: Model 247
Model Years: 1981 to 1995
Manufacturer #: 12 14 2 325 284, 12 14 1 244 477, 12 14 1 244 478

BOSCH Part #: 0 227 100 103, 0 227 100 113, 0 227 100 116, 137, 138

(See APPLICATION TABLE tab BELOW to verify vehicle fitment)

Brand :

BMW List Price $198.87

USD Price $42.00

BUY NOW $36.99

Quantity in Stock:36

Part #: IGNMOD-R284

Quantity:

Description

Application Table

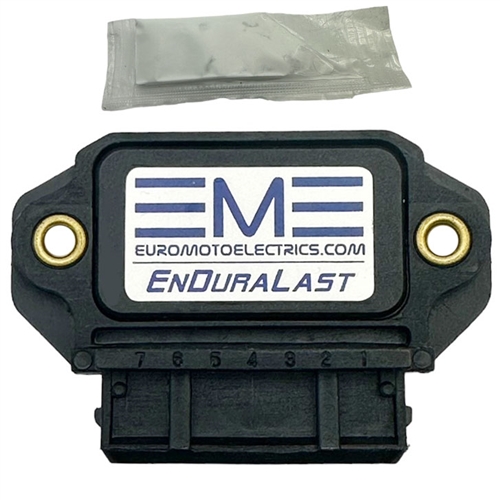

Includes applicator with 1 gram of heat transfer compound. Dwell controlled by module.
Transient voltage spike protection on all pins. Timed auto shut off.
For use with all BOSCH OE, hall effect trigger sensor systems.

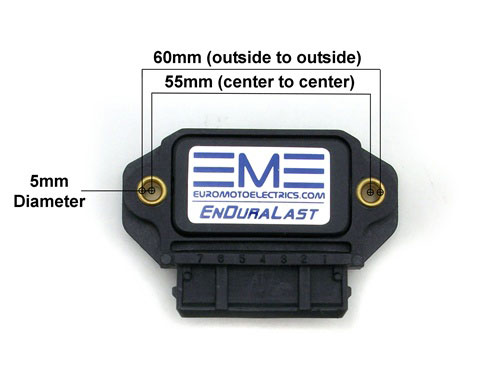

Mounting hole dimensions /diameter = 5 mm
Distance between mounting holes = 60 mm , 2 3/8 " (outside-to-outside).

Part # IgnMod-R284
BMW # 12 14 2 325 284

Model	Year
R45	01/1978 - 07/1985
R45/N	03/1978 - 07/1985
R45T	10/1980 - 06/1985
R45T/N	09/1980 - 07/1985

R65	01/1978 - 07/1985
R65 20KW	04/1985 - 06/1993
R65 35KW	06/1985 - 10/1988
R65	78-85 07/1978 - 04/1985
R65	85-87 07/1985 - 05/1987
R65GS	11/1987 - 11/1992
R65GS	11/1987 - 11/1992
R65LS	03/1981 - 03/1985
R65LS	06/1981 - 02/1985
R65RT SF	07/1985 - 11/1988
R65T	09/1980 - 07/1985

R80	77-80 04/1977 - 11/1984
R80	84-87 07/1984 - 07/1987
R80	84-95 03/1984 - 01/1995
R80GS	06/1980 - 03/1987
R80GS	80-87 05/1980 - 07/1987
R80GS	87-90 01/1987 - 07/1990
R80GS	87-90 01/1987 - 07/1990
R80GS	90-95 04/1990 - 10/1995
R80GS	90-95 04/1990 - 10/1995
R80GS	96-96 01/1996 - 12/1996
R80GS PD	90-90 06/1990 - 07/1990
R80GS PD	90-90 06/1990 - 07/1990
R80GS PD	90-95 08/1990 - 06/1995
R80GS PD	90-95 08/1990 - 06/1995
R80R	03/1991 - 06/1994
R80R	03/1991 - 06/1994
R80R Mystik	03/1994 - 03/1995
R80R Mystik	03/1994 - 03/1995
R80RT	82-84 06/1982 - 11/1984
R80RT	82-84 08/1982 - 10/1984
R80RT	84-87 07/1984 - 04/1987
R80RT	84-87 07/1984 - 12/1995
R80ST	04/1982 - 10/1984
R80ST	10/1982 - 10/1984
R80TIC	06/1978 - 01/1985

R100GS PD	89-90 06/1989 - 04/1990
R100GS PD	89-90 06/1989 - 04/1990
R100GS PD	90-95 09/1990 - 12/1995
R100GS PD	90-95 09/1990 - 12/1995
R100GS PD	90-96 08/1990 - 02/1996
R100GS PD	90-96 08/1990 - 02/1996
R100R	03/1991 - 12/1995
R100R	03/1991 - 12/1995
R100R	09/1991 - 12/1995
R100R	09/1991 - 12/1995
R100R Mystik	03/1994 - 09/1995
R100R Mystik	03/1994 - 09/1995
R100R Mystik	12/1993 - 01/1996
R100R Mystik	12/1993 - 01/1996
R100RS	76-84 03/1976 - 11/1984
R100RS	76-84 05/1976 - 10/1984
R100RS	86-92 07/1986 - 10/1992
R100RS	87-92 08/1987 - 08/1992
R100RT	78-84 04/1978 - 09/1984
R100RT	78-84 06/1978 - 10/1984
R100RT	87-95 07/1987 - 12/1995
R100RT	87-95 08/1987 - 12/1995
R100TIC	11/1980 - 09/1984
